Cardolite® NX - 2026

1 of 30 products in this brand
Cardolite® NX - 2026 is a high purity, low odor, lighter color multipurpose resin modifier and accelerator suitable for coatings, adhesives, and other applications. It shares similar properties with NX-2021 but with improved purity and color.

Chemical Family: Diols, Glycols

Labeling Claims: Bio-based, Environmentally Friendly, From Renewable Resources, High Purity, Low Odor, Non-Toxic

Compatible Substrates & Surfaces: Concrete

Physical Form: Liquid

Synonyms: Anacardium occidentale nutshell liquid, Cashew nut shell oil, Cashew nutshell liquid oil, Cashew nutshell oil, Cashew shell oil

Ask EM Sullivan Questions

GS

VD

Message our experts with questions

GS

Gene Sullivan

Please reach out to me with any questions, I am happy to assist you in finding the right product or learning more about our storefront

VD

Vince D'Andrea

Executive/Management

Please reach out to me with any questions, I am happy to assist you in finding the right product or learning more about our storefront

Enhanced TDS

Identification & Functionality

Features & Benefits

Labeling Claims
CASE Ingredients Features
Product Benefits
  • Lowers viscosity while maintaining performance
  • Preserves chemical and water resistance
  • Good dilution and acceleration effects
  • Improves flexibility
  • Improves pigment wetting properties
  • Usable on both sides on an epoxy formulation
  • Light color
  • Low odor
  • Low migration rate
  • Low volatility and high flash point
  • Non-toxic
  • Based from natural, renewable, non-food raw material feedstock

Applications & Uses

Markets
Applications
Compatible Substrates & Surfaces
Fluids & Lubricants Type
Adhesive & Sealant End Applications
Fluids & Lubricants End Use
Use Level
max. 20% (of total resin weight)
Product Applications
  • Cardolite NX-2026 was designed as an accelerator and formulation tool to reduce VOC levels and viscosity on coating systems used in heavy duty marine, protective, industrial, and floor coatings.
  • Although higher in viscosity than some other modifiers, the structure of this product gives excellent dilution efficiency to help rapidly reduce viscosity for improved pigment wetting, flexibility, and general application properties.
  • Coating physical properties such as water resistance, corrosion protection, color stability, chemical resistance, and gloss are not significantly compromised with the addition of NX-2026.
  • This product can be added to either component of an epoxy system to provide good cure acceleration and replace or reduce levels of hazardous accelerators like nonylphenol.

Properties

Color
Physical Form
Mechanical Properties
ValueUnitsTest Method / Conditions
Lap Shear Strength (Steel)*16.53MPa-
Tensile Strength*54.69MPa-
Tensile Modulus*2433.9MPa-
Elongation At Break*5.29%-
Flexural Strength*98.6MPa-
Flexural Modulus*2595.5MPa-
Compressive Strength*76.4MPa-
Compressive Modulus*1566.6MPa-
Glass Transition Temperature*72.5°C-
Typical Properties
ValueUnitsTest Method / Conditions
Colormax. 2GardnerASTM D1544
Viscosity (at 25°C)max. 60cPsASTM D2196
Puritymin. 96%NTM-GC3
Density (at 25°C)7.76lbs/galASTM D1475
Flash Pointmin. 260°CASTM D93
Solid Contentmax. 0.5%ASTM D2369-98
Deblock Temperature128°C-
Isocyanate (NCO) Type (10.4% NCO)PPG prepolymer--
Bio Content98%Measured
pHapprox. 7
Theoretical Estimation100%
Note

MECHANICAL PROPERTIES

*Test Method: Epoxy was blend with 20% of NP or Cardanol and cured with TETA Cure condition: 25°C/16-24h+100°C/2h cured

Sample: Epon828/NX-2026/TETA=80/20/10.23

  • Cardanol, NX-2026, showed increased flexibility compared to Nonyl Phenol.
  • Addition of Cardanol improves bond strength.
  • Nonyl Phenol shows less impact on mechanical properties than Cardanol.

Regulatory & Compliance

Chemical Inventories

Technical Details & Test Data

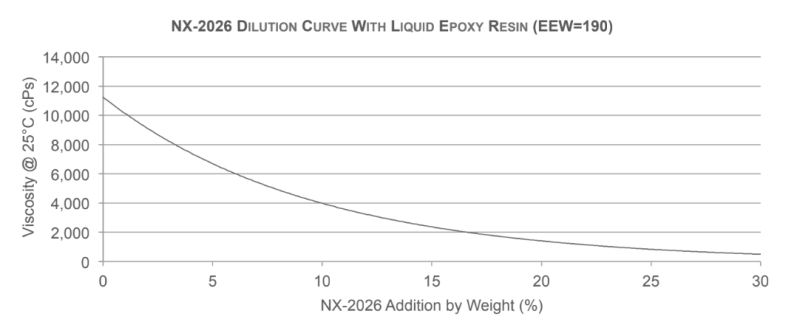

Dilution Curve

Cardolite® NX - 2026 - Dilution Properties - 1

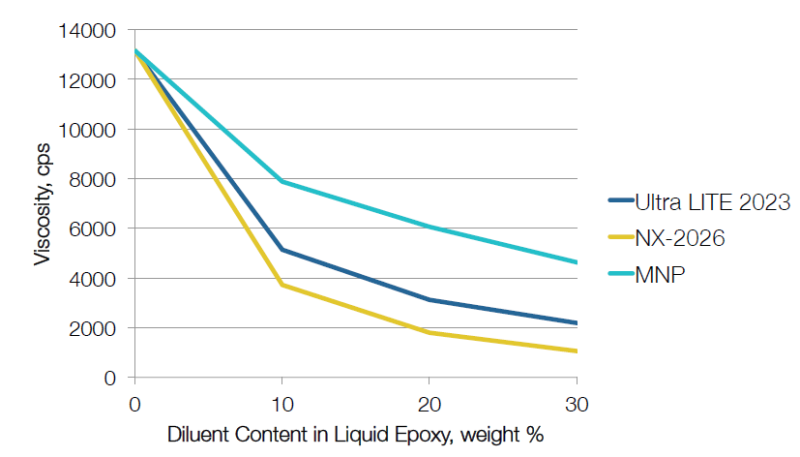

Cardolite® NX - 2026 - Dilution Power - 1

  • Dilution Power Graph
  • Both cardanol grades show much better dilution power than Decoupage MNP.
NCO Blocking Agent Technology

High purity and light color cardanol, NX-2026, is an effective isocyanate blocking agent that can be used to replace petro-based phenols. NX-2026 blocked NCO systems should be lower in viscosity and require lower deblocking temperatures than phenol. Moreover, cardanol can act as a flexibilizer in the final matrix.

LCA Results
Results for each kg of NX-2026 Produced
Impact category Unit Nut China
Abiotic depletion (minerals) kg Sb-eq 3.85E-07
Abiotic depletion (fossil fuels) MJ 19.5
Global warming (GWP100a)* kg CO2-eq 1.92
Ozone layer depletion (ODP) kg CFC-11-eq 1.05E-07
Photochemical oxidation kg C2H4-eq 3.65E-04
Acidification kg SO2-eq 8.94E-03
Eutrophication kg PO4- eq 2.84E-03

*Excluding CO2 storage, only production

  • Environmental burden is bigger for NX-2026 due to additional processing steps required to achieve higher purity.

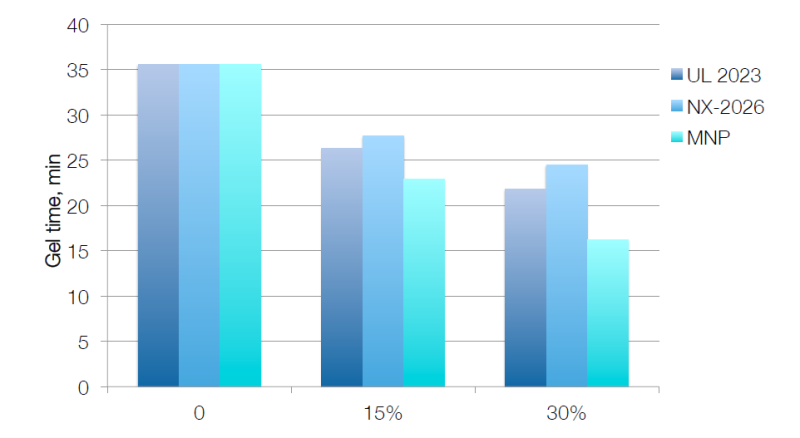

Acceleration Effect

Cardolite® NX - 2026 - Acceleration Effect - 1

  • MNP shows fastest acceleration based on gel time, but both cardanol grades still provide good acceleration.

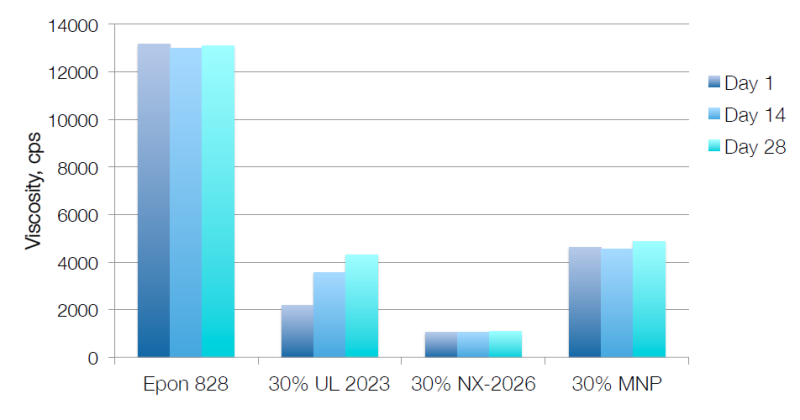

Viscosity Profile

Cardolite® NX - 2026 - Viscosity Profile - 1

  • Viscosity Advancement with D.E.R. 331
  • NX-2026 shows the best stability with Epon 828. Better choice than UL 2023 for part A.

Storage & Handling

Storage Condition

Cardolite products may absorb moisture and carbon dioxide when left in open containers, which could result in increased viscosity, discoloration, reduction of reactivity, and/or crystallization of the products. These products should be kept tightly sealed in their original containers when not in use, and stored in a cool, dry place.
