Enhanced TDS
Identification & Functionality
- Chemical Family
- Chemical Name
- Plastics & Elastomers Functions
- Technologies
- Product Families
Features & Benefits
- Materials Features
- Product Features
ADINS® additives, based on functionalized uncommon silicate with a needle-like structure, allow to improve the fire performance of polymeric formulations:
- Enhances char structure, improving gas barrier and mechanical properties
- Avoids flame propagation by burning polymer dripping
- Reduces the smoke production
Applications & Uses
- Compatible Polymers & Resins
Properties
- Physical Form
- Appearance
- Free - flowing powder
- Physico-Chemical Properties
| Value | Units | Test Method / Conditions | |
| Moisture Content | max. 4.0 | % | - |
| Particle Size Distribution (Dry Sieving, Residue on 45 μm) | max. 3.0 | % | - |
Technical Details & Test Data
- PP-intumescent System Formulations
Sample PP Borealis HE125MO (%) Intumescent IFR (%) AOX Irganox B 225 (%) ADINS Clay (%) Reference 72.5
25 2.5 0 ADINS Clay 20 70.5 25 2.5 2 - Reaction To Fire Tests
CONE CALORIMETER TEST
Test Conditions
- Size of the samples: 100x100 up to 4mm thick 3 measures per sample
- Multiple heat flux levels:
- 25 kW/m²
- 50 kW/m²
- 65 kW/m²
Important Parameters Measured And Calculated
- Heat Release Rate (HRR): Rate at which heat is generated by fire.
- Peak of Heat Release Rate (pHRR ): Maximum of HRR.
- Total Heat Release (THR): Sum of the heat released from the ignition.
- ARHE: Average Rate of Heat Emission.
- MARHE: Maximum of ARHE.
Some Results
Sample MARHE (kW/m²) THR 1200s (MJ/m²) pHRR (kW/m²) Reference 117.74 61.5 155.17 ADINS Clay 20 138.59 58.8 187.86
SMOKE CHAMBER TEST Test Conditions
- Radiation applied = 50 kW/m 2 .
- Distance between sample surface and radiation source = 25 mm.
- Size of the samples: 75x75mm, 2 3 mm thickness. 3 measures per sample
- Optional pilot flame
Important Parameters Measured And Calculated
- Specific Optical Density (Dₛ): Density of smoke measured by an opacimeter.
- Maximum Dₛ (Dₛ) max
- VOF4: Integral of the DS(t) curve calculated from t=0 to t=4min.
- Total Smoke Production (TSP): sum of the smoke released from the ignition.

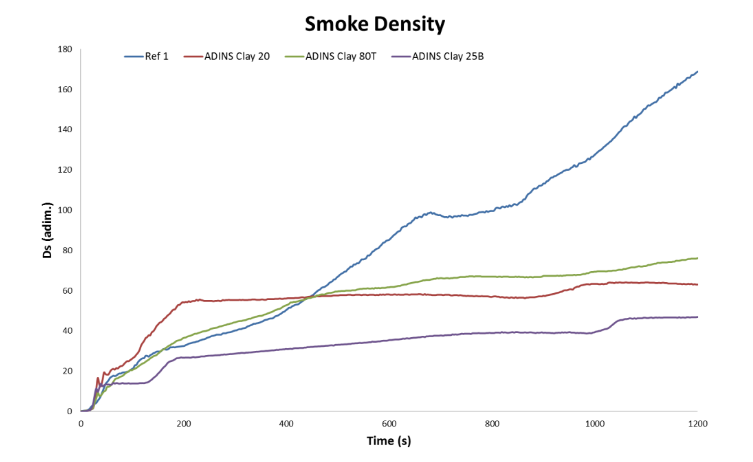

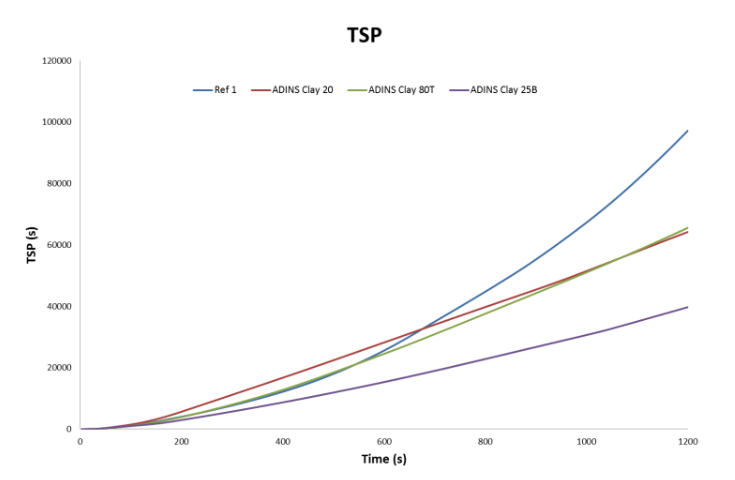

Smoke Chamber Results
Sample TSP (1200s) Ds max (20') VOF4 Reference 1620.4 168.8 93.5 ADINS Clay 20 1070.4 64.1 132.7
VERTICAL BURNING TEST (UL-94)
- Classifies plastics according to how they burn in various thicknesses
UL-94 vertical burning test results
- 10 seconds of flame application.
- If flaming of polymer stops, then apply flame another 10 seconds.
- 5 measures per sample
Criteria conditions V0 V1 V2 Afterflame time for each individual specimen t1 or t2 10 s 30 s 30 s Total aferflame time for any condition set (t1 plus t2 for the 5 specimens) 50 s 250 s 250 s Afterflame plus afterglow time for each individual specimen after the second flame application (t2 + t3) 30 s 60 s 60 s Afterflame or afterglow of any specimen up to the holding clamp No No No Cotton indicator ignited by flaming particles or drops No No Yes Otherwise: No Rating
- Test Conclusions
- All samples showed similar behaviour in the cone calorimeter test.
- When ADINS is added into the PP/ intumescent formulations the Total Smoke Production and the Smoke Density is reduced in all cases.
- In the UL-94 test we can see how the samples not drip.
- In this formulation, with ADINS Clay B25 the Total Smoke Production is 60% reduced.
